When it comes to maintaining your Karcher pressure washer, understanding how to properly remove the pump is essential. Whether you need to replace a faulty pump or simply clean it for optimal performance, knowing the correct steps will ensure a smooth and successful process.

Before you begin, it’s important to take proper safety precautions. Make sure your pressure washer is turned off and disconnected from the power source. Wear gloves to protect your hands and be cautious of hot surfaces. With these safety measures in place, you can proceed with removing the pump.

First, locate the pump on your Karcher pressure washer. It is typically a large, cylindrical component with hoses connected to it. Once you have identified the pump, you will need to disconnect the hoses attached to it. Use a wrench or pliers to loosen and remove any hose clamps, making sure to catch any excess water that may spill out.

Next, you will need to detach the pump from the engine of the pressure washer. Depending on the model, this may involve removing bolts or screws that secure the pump in place. Use the appropriate tools to carefully loosen and remove these fasteners. Once all fasteners are removed, gently lift the pump away from the engine, taking care not to damage any other components.

With the pump successfully removed from your Karcher pressure washer, you can now proceed with your desired maintenance or replacement tasks. Remember to follow any specific instructions outlined in your pressure washer’s manual or consult a professional if needed. By taking the time to properly remove the pump, you will ensure the longevity and performance of your Karcher pressure washer.

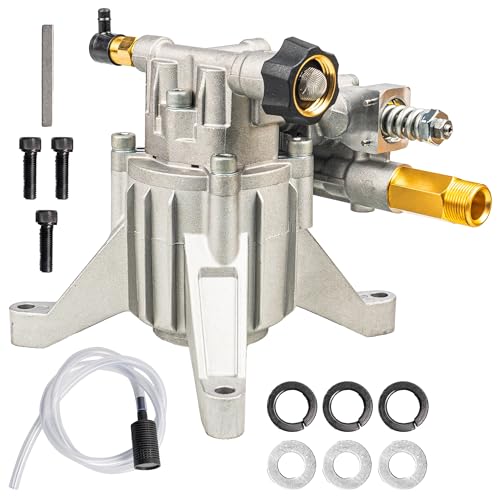

$69.99
5 used from $62.71
as of September 19, 2024 3:45 am change. Any price and availability information displayed on Amazon at the time of purchase will apply to the purchase of this product.">
Amazon.com

Step-by-Step Guide: Removing Pump from Karcher Pressure Washer

If you need to remove the pump from your Karcher pressure washer, follow this step-by-step guide to ensure a successful and safe removal process.

Step 1: Safety First

Before beginning any work on your pressure washer, be sure to turn off the machine and disconnect it from the power source. This will help prevent any accidents or injuries during the pump removal process.

Step 2: Gather Tools and Materials

You’ll need a few tools and materials to successfully remove the pump from your pressure washer. This includes a wrench, pliers, screwdriver, and a towel or rag to clean up any spills or drips.

Step 3: Remove the High-Pressure Hose

Using your pliers, loosen and disconnect the high-pressure hose from the pump. This will ensure easier access to the pump for removal.

Step 4: Disconnect Water Inlet and Outlet

Using an adjustable wrench, loosen and disconnect the water inlet and outlet connections from the pump. This will allow you to remove the pump from the pressure washer unit.

Step 5: Remove Mounting Bolts

Using a screwdriver or wrench, remove the mounting bolts that secure the pump to the pressure washer frame. Depending on the model, there may be multiple mounting bolts, so be sure to remove all of them.

Step 6: Separate Pump from Pressure Washer

Once all of the mounting bolts are removed, carefully lift the pump away from the pressure washer unit. Take care not to damage any surrounding components or hoses during this process.

Step 7: Clean and Inspect

Take a moment to clean the pump and inspect it for any signs of damage or wear. This is also a good time to check the O-rings and seals for any signs of leakage or deterioration.

Step 8: Reassemble or Replace

If the pump is still in good condition, you can reassemble it back onto the pressure washer by following these steps in reverse order. If the pump is damaged, it may need to be replaced with a new one. Consult the manufacturer’s instructions or contact customer support for guidance on replacing the pump.

Step 9: Test the Pressure Washer

See also  Can An Electric Pressure Washer Overheat

Once the pump is securely reinstalled or replaced, reconnect the high-pressure hose and water inlet and outlet connections. Plug in the pressure washer and test it to ensure everything is functioning properly.

Step 10: Maintenance and Regular Check-ups

To keep your pressure washer running smoothly, it’s important to perform regular maintenance and check-ups. This includes cleaning or replacing filters, inspecting hoses for wear, and checking oil levels. Refer to the manufacturer’s instructions for a detailed maintenance schedule.

By following this step-by-step guide, you’ll be able to remove the pump from your Karcher pressure washer safely and efficiently. Remember to always prioritize safety and consult the manufacturer’s instructions for specific guidance.

Prepare for Pump Removal

Before removing the pump from your Karcher pressure washer, it’s important to ensure that you have all the necessary tools and equipment on hand. Here is a step-by-step guide on how to properly prepare:

  1. Shut off the pressure washer and disconnect it from any power sources to avoid any accidental starts.
  2. Relieve any built-up pressure in the system by pulling the spray wand trigger until no more water comes out.
  3. Remove any attachments or accessories that may obstruct access to the pump, such as hoses or nozzles.
  4. Place a clean, dry cloth or towel underneath the pressure washer to catch any spilled water or oil during the removal process.
  5. Gather the necessary tools, which may include a wrench, pliers, screwdriver, and pipe sealant, depending on the specific model of your pressure washer.
  6. Refer to the user manual or online resources for your Karcher pressure washer model to familiarize yourself with the specific steps and precautions for pump removal.

By properly preparing for the pump removal process, you can ensure a smooth and efficient repair or maintenance procedure for your Karcher pressure washer.

Disconnect Pressure Washer

Before removing the pump from your Karcher pressure washer, it’s important to disconnect all power sources and release any built-up pressure in the machine. Follow these steps to safely disconnect the pressure washer:

Step 1: Turn off the Power

First, ensure that the pressure washer is turned off and unplugged from the power source. This will prevent any accidental starts or electrical shocks during the disassembly process.

Step 2: Relieve Pressure

Next, you need to relieve the pressure built up inside the pressure washer. Start by squeezing the trigger on the spray gun to release any remaining water or pressure. Make sure the spray gun is pointed away from you and others to prevent injury.

Step 3: Disconnect Water Supply

After releasing the pressure, turn off the water supply connected to the pressure washer. This can typically be done by closing the valve on the water hose connected to the machine.

Step 4: Remove High-Pressure Hose

Once the water supply is disconnected, you can remove the high-pressure hose attached to the pump. To do this, unscrew the connection between the hose and the pump. Be cautious as there might still be residual water in the hose.

Step 5: Remove Detergent Hose (if applicable)

If your pressure washer has a detergent hose, disconnect it from the pump as well. Similar to the high-pressure hose, unscrew the connection between the hose and the pump carefully.

With all power sources disconnected and pressure released, your Karcher pressure washer is ready for the pump removal process.

Remove Pump Cover

Before removing the pump from your Karcher pressure washer, you need to first remove the pump cover. The pump cover is the outer casing that protects the internal components of the pump. Here are the steps to remove the pump cover:

Step 1: Disconnect the pressure washer from the power source and release any pressure that may be in the system.
Step 2: Locate the screws or bolts that hold the pump cover in place. These may be located on the sides or on the top of the pump.
Step 3: Using the appropriate screwdriver or wrench, remove the screws or bolts from the pump cover.
Step 4: Gently lift off the pump cover to expose the internal components of the pump.
See also  Best 1 /4 Female Quick Connect Pressure Washer

Once the pump cover has been removed, you can proceed with removing the pump from your Karcher pressure washer. Be sure to refer to the manufacturer’s instructions or consult a professional if you have any doubts or concerns.

Detach Pump from Motor

Removing the pump from the motor on your Karcher pressure washer is a relatively straightforward process. Follow the steps below to complete this task:

Step 1: Safety Precautions

Before beginning any maintenance or repair work, it’s important to ensure your safety. Start by ensuring the pressure washer is turned off and disconnected from the power source. Allow it to cool down completely before proceeding.

Step 2: Access the Pump

Locate the pump on your Karcher pressure washer. It is typically located near the motor and has attached hoses and fittings. Clear away any debris or dirt that may be covering the pump.

Step 3: Disconnect Hoses

Using a wrench or pliers, carefully loosen and remove any hoses or fittings that are attached to the pump. These may include water inlet hoses, high-pressure hoses, and any other connecting hoses. Be sure to completely detach the hoses to ensure a smooth removal process.

Step 4: Remove Pump Mounting Bolts

With all hoses disconnected, locate the mounting bolts that secure the pump to the motor. These bolts may be located on the front or sides of the pump. Use a wrench or socket set to loosen and remove these bolts. Keep track of the bolts as you will need them for reassembly.

Step 5: Detach Pump from Motor

Once all mounting bolts are removed, gently pull the pump away from the motor. Be careful not to force or damage any components. You may need to wiggle or rotate the pump slightly to release it fully from the motor.

With the pump detached from the motor, you can now perform any necessary maintenance or repairs. If you need to replace the pump, be sure to consult the owner’s manual or contact Karcher for the appropriate replacement part.

Remember to carefully reassemble all components and secure the pump back onto the motor using the mounting bolts. Reconnect all hoses and fittings, ensuring they are tightly secured.

By following these steps, you should be able to successfully detach the pump from the motor on your Karcher pressure washer. Remember to exercise caution and consult the owner’s manual if you have any concerns or difficulties.

Reassemble Pressure Washer

Once you have successfully removed the pump from your Karcher pressure washer, you will need to reassemble it properly before using it again. Follow the steps below to ensure correct reassembly:

  1. Clean all parts: Thoroughly clean all the components of the pressure washer pump, including the pistons, valve plates, and seals. This will help remove any debris or dirt that may have accumulated during the disassembly process.
  2. Inspect for damage: Carefully inspect each part for any signs of damage or wear. Replace any damaged or worn-out components to ensure optimal performance.
  3. Apply lubrication: Apply a small amount of lubrication, such as silicone grease, to the O-rings and seals. This will help prevent any leaks and ensure smooth operation.
  4. Reassemble the pump: Carefully reassemble the pump, following the reverse order of the disassembly process. Make sure each component is properly aligned and secured in place.
  5. Tighten all screws: Once the pump is fully reassembled, tighten all the screws to the specified torque. This will help ensure that the pump remains stable during operation.
  6. Test the pressure washer: After reassembly, test the pressure washer to ensure it is functioning properly. Start the engine and check for any leaks or unusual noises. If everything seems to be working fine, you can proceed to use the pressure washer as usual.
See also  What Type Of Oil Does A Craftsman Pressure Washer Use

Remember to always refer to the manufacturer’s manual for specific instructions on reassembling your Karcher pressure washer pump. Following these guidelines will help ensure a successful reassembly and prolong the lifespan of your pressure washer.

Note: If you are unsure or uncomfortable with reassembling the pressure washer pump yourself, it is recommended to seek professional assistance.

Questions and answers,

What is a pump in a Karcher pressure washer?

A pump in a Karcher pressure washer is a component that pressurizes water and allows it to be sprayed out at high pressure. It is responsible for creating the cleaning power of the pressure washer.

Why would I need to remove the pump from my Karcher pressure washer?

There could be several reasons for removing the pump from a Karcher pressure washer. It may need to be replaced if it is damaged or worn out. Additionally, removing the pump may be necessary in order to access and repair other parts of the pressure washer.

What are the steps to remove the pump from a Karcher pressure washer?

The steps to remove the pump from a Karcher pressure washer may vary depending on the specific model. However, in general, the process involves disconnecting the water supply, removing any attachments or accessories, disconnecting the pump from the engine or motor, and finally, removing any mounting bolts or screws that secure the pump to the frame of the pressure washer.

Are there any special tools required to remove the pump from a Karcher pressure washer?

In most cases, removing the pump from a Karcher pressure washer can be done with basic hand tools such as wrenches, sockets, and screwdrivers. However, some models may require specific tools or additional equipment, so it is always a good idea to consult the owner’s manual or manufacturer’s instructions for specific requirements.

Are there any precautions I should take when removing the pump from a Karcher pressure washer?

Yes, there are a few precautions you should take when removing the pump from a Karcher pressure washer. First, make sure to turn off the pressure washer and disconnect it from the power source. Additionally, it is important to wear protective gloves and eyewear to prevent injury. Finally, be cautious when handling the pump as it may still contain pressurized water or cleaning solutions.

How do I remove the pump from my Karcher pressure washer?

To remove the pump from your Karcher pressure washer, you will need to start by disconnecting the spark plug wire to ensure the engine doesn’t start by accident. Then, remove the high-pressure hose and any other attachments. Next, locate the pump mounting bolts and remove them using a socket wrench. Once the bolts are removed, carefully lift the pump off the frame. Make sure to take note of any hoses or connections that may still be attached to the pump and disconnect them before fully removing the pump.

What tools do I need to remove the pump from a Karcher pressure washer?

To remove the pump from a Karcher pressure washer, you will need a few tools. The main tool you will need is a socket wrench or a set of wrenches to remove the pump mounting bolts. You may also need a pair of pliers or a wrench to disconnect any hoses or connections that are attached to the pump. Additionally, having a set of screwdrivers on hand can be helpful for removing any panels or covers that may be blocking access to the pump. Overall, the specific tools you’ll need may vary depending on the model of your pressure washer, so it’s always a good idea to consult the user manual or manufacturer’s instructions for your specific model.
