A Troy Bilt pressure washer pump plays a crucial role in maintaining the proper functioning of your pressure washer. Over time, wear and tear can cause the pump to lose efficiency or even stop working altogether. Rather than spending money on a new pump, you can save both time and money by rebuilding the pump yourself.

Rebuilding a Troy Bilt pressure washer pump is a relatively simple process that requires a few basic tools and some patience. By following a few step-by-step instructions, you can have your pump back in working order in no time.

The first step in rebuilding a Troy Bilt pressure washer pump is to gather the necessary tools and parts. You will need a wrench set, a screwdriver set, a replacement pump seal kit, and a pump rebuild kit. It’s important to have these items on hand before you start the process to avoid any unnecessary delays.

Once you have all the required tools and parts, you can begin the rebuilding process. Start by disconnecting the pressure washer from any power source and removing it from the water source. Then, use a wrench to remove the pump from the pressure washer engine.

With the pump removed, carefully disassemble the pump by following the instructions provided in the pump rebuild kit. Pay close attention to how each component fits together, as this will make reassembly easier later on. Inspect each part for any signs of damage or wear and replace as necessary using the parts included in the rebuild kit.

$91.18
2 used from $91.18
as of July 5, 2024 9:35 am change. Any price and availability information displayed on Amazon at the time of purchase will apply to the purchase of this product.">
Amazon.com

After all the damaged or worn parts have been replaced, it’s time to reassemble the pump. Take care to follow the instructions provided in the rebuild kit and ensure that each component is properly aligned and tightened. Once the pump is fully reassembled, reattach it to the pressure washer engine using a wrench.

Finally, reconnect the pressure washer to the power source and water source and test the pump to ensure it is working correctly. If there are no leaks or unusual noises, your Troy Bilt pressure washer pump has been successfully rebuilt and is ready for use.

By following these step-by-step instructions, you can save both time and money by rebuilding your own Troy Bilt pressure washer pump. With a little patience and the right tools, you can have your pump working like new again in no time.

Understanding Your Troy Bilt Pressure Washer Pump

The pressure washer pump is an essential component of your Troy Bilt pressure washer. Understanding how it works and how to maintain it can help you maximize its lifespan and ensure optimal performance. Here are some key points to consider:

1. Pump Types

Troy Bilt pressure washers typically come with either an axial cam pump or a triplex pump. An axial cam pump is more common and is suitable for most light to medium-duty cleaning tasks. On the other hand, a triplex pump is more heavy-duty and is ideal for demanding professional use.

2. Water Inlet and Outlet

The pump has a water inlet and outlet that are connected to the pressure washer’s supply hose and high-pressure hose, respectively. The water inlet draws water from a water source, such as a garden hose, while the water outlet delivers the pressurized water to the spray gun.

3. Pump Maintenance

Regular maintenance is crucial to keep your pump in good condition. This includes inspecting and cleaning the inlet screen to prevent debris from clogging the pump, checking and tightening all connections, and lubricating any moving parts as recommended by the manufacturer.

4. Pump Troubleshooting

If you encounter any issues with your Troy Bilt pressure washer pump, it’s important to diagnose and troubleshoot the problem. This may involve checking for leaks, ensuring proper water flow, and inspecting the pump’s seals and plungers. Refer to the manual or consult a professional for guidance.

See also  What Fuel Is Required For Pressure Washer

By understanding your Troy Bilt pressure washer pump and taking proper care of it, you can enjoy reliable and efficient cleaning performance for years to come.

Tools and Parts You Will Need

Before you begin the process of rebuilding your Troy Bilt pressure washer pump, it is essential to gather all the necessary tools and parts. Here is a list of items you will need:

Tools:

  • Socket wrench set
  • Adjustable wrench
  • Screwdriver set (Phillips and flathead)
  • Needle-nose pliers
  • Allen wrench set
  • Rubber mallet
  • Appropriate safety equipment (gloves, safety goggles, etc.)

Parts:

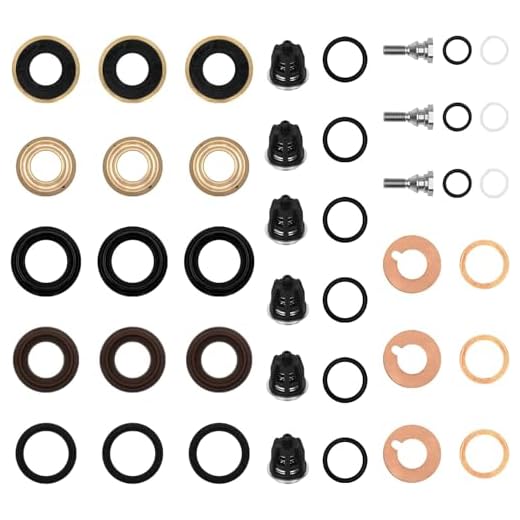

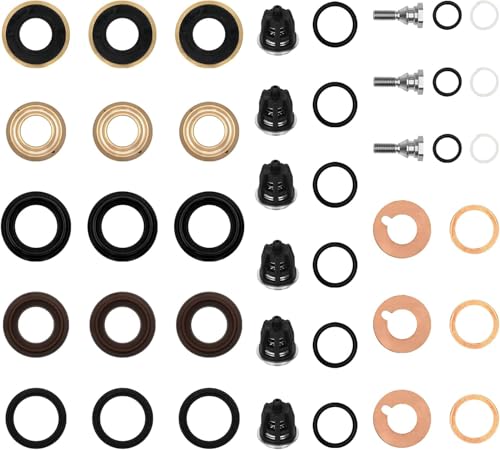

  • Pressure washer pump rebuild kit
  • Replacement valves and seals
  • New gaskets
  • Oil seals
  • New O-rings
  • Thermal release valve (if needed)

Having these tools and parts ready before starting the rebuild process will ensure a smoother and more efficient repair. It is crucial to use the correct tools and high-quality replacement parts to guarantee the longevity and performance of your Troy Bilt pressure washer pump.

Step-by-Step Guide on Rebuilding the Pump

Rebuilding your Troy Bilt pressure washer pump can help restore its performance and extend its lifespan. Here is a step-by-step guide to help you through the process:

Step 1: Prepare the Tools

Before you begin, gather the following tools: a wrench, pliers, screwdriver, socket set, and a rebuild kit for your specific Troy Bilt pressure washer pump model.

Step 2: Safety First

Make sure the pressure washer is turned off and disconnected from any power sources. Also, relieve pressure from the pump by squeezing the trigger on the wand until water stops flowing.

Step 3: Remove the Pump

Start by disconnecting the hoses and fittings attached to the pump. Use a wrench or pliers to loosen and remove any bolts or clamps securing the pump to the engine or frame. Carefully lift the pump away from the pressure washer.

Step 4: Disassemble the Pump

Use a screwdriver or socket set to remove the bolts securing the pump housing. Take note of the order and orientation of the parts as you disassemble the pump. Be careful not to lose any small components.

Step 5: Inspect and Clean Components

Thoroughly inspect all pump components for signs of wear or damage. Check the seals, o-rings, valves, and pistons for any cracks, tears, or excessive wear. Clean all the components with a mild detergent and water to remove any debris or build-up.

Step 6: Replace Damaged Parts

If you find any damaged or worn-out parts during the inspection, replace them with new ones from the rebuild kit. Follow the manufacturer’s instructions included in the kit for proper installation.

Step 7: Reassemble the Pump

Using the notes you took during disassembly, reassemble the pump in the reverse order. Make sure all bolts and fittings are tightened securely. Follow any specific instructions provided by the rebuild kit or the manufacturer.

Step 8: Reinstall the Pump

Carefully place the reassembled pump back onto the pressure washer. Reconnect all hoses and fittings, ensuring they are properly secured. Use a wrench or pliers to tighten any bolts or clamps that hold the pump in place.

Step 9: Test the Pump

Turn on the pressure washer and check for any leaks or abnormal noises coming from the pump. Test the pressure washer to ensure it is working correctly before using it for any cleaning tasks.

By following these steps, you can effectively rebuild your Troy Bilt pressure washer pump and restore its functionality. Remember to consult the user manual or seek professional assistance if needed.

See also  Is Cleaning Cars With Pressure Washer Safe

Tips and Common Mistakes to Avoid

When it comes to rebuilding a Troy Bilt pressure washer pump, there are a few tips and common mistakes to keep in mind to ensure a successful repair. These tips can help you avoid potential problems and save time and money in the process.

1. Take your time: Rebuilding a pressure washer pump can be a complex task, so it’s important to take your time and follow the instructions carefully. Rushing through the process can lead to mistakes and can negatively affect the performance of your pressure washer.

2. Use the right tools: Make sure you have all the necessary tools before you begin. Using the wrong tools can damage the pump and make the rebuilding process more difficult. Refer to the manufacturer’s instructions or a reputable guide to ensure you have the correct tools for the job.

3. Clean all parts: Before reassembling the pump, thoroughly clean all parts to remove any dirt, debris, or old lubricant. This will help prevent any contaminants from affecting the performance of your pump after the rebuild.

4. Lubricate properly: Apply the recommended lubricant to all moving parts during the reassembly process. This will help ensure smooth operation and extend the lifespan of your rebuilt pump.

5. Double-check connections: Before testing your rebuilt pump, double-check all connections and fittings to make sure everything is securely tightened. Loose connections can lead to leaks or reduced performance.

6. Test in a safe location: When testing your rebuilt pump, be sure to do so in a safe location, away from flammable materials or other hazards. This will minimize the risk of accidents and ensure your safety.

7. Seek professional help if unsure: If you’re not confident in your ability to rebuild the pump on your own, it’s always best to seek professional help. A qualified technician can ensure the job is done correctly and save you from potential headaches down the line.

By following these tips and avoiding common mistakes, you can successfully rebuild your Troy Bilt pressure washer pump and have it running like new again.

Testing and Troubleshooting

Before attempting to rebuild your Troy Bilt pressure washer pump, it is important to properly diagnose any issues you may be experiencing. Here are some troubleshooting steps you can follow:

1. Check for leaks: Inspect the pump for any signs of leaks, such as water dripping or puddling around the pump. Leaks can indicate a problem with the seals or valves and may require replacement.

2. Verify water flow: Make sure there is a steady supply of water flowing into the pump. Low water pressure or a restricted water source can cause the pump to perform inadequately.

3. Test pressure output: Connect a pressure gauge to the pump’s outlet to measure the pressure output. Compare the reading to the manufacturer’s specifications. If the pressure is significantly lower than expected, it may indicate a problem with the pump’s components.

4. Check for air leaks: Air leaks in the pump can cause a loss of pressure. Use a soapy water solution to check for any air bubbles around the pump’s fittings or connections. Replace any faulty fittings or seals.

5. Inspect the pump’s valves: Check the intake and discharge valves for any signs of damage, such as cracks or excessive wear. Faulty valves can prevent proper pressure buildup and may need to be replaced.

If you have determined that your Troy Bilt pressure washer pump requires a rebuild, follow the appropriate steps outlined in the manufacturer’s manual or consult a professional for assistance.

Maintaining Your Troy Bilt Pressure Washer Pump

Regular maintenance is essential to keep your Troy Bilt pressure washer pump in optimal condition and ensure it continues to operate efficiently. By following these simple steps, you can extend the life of your pump and avoid costly repairs.

See also  Where Is The Fuse On A Greenworks Pressure Washer

1. Check the Oil Level

Before each use, check the oil level in your pressure washer pump. Low oil levels can lead to overheating and damage to the pump. Make sure the oil is at the recommended level and top up if necessary.

2. Inspect for Leaks

Regularly inspect your pump for any signs of leaks. Leaking water or oil can indicate a problem with the seals or fittings. Address any leaks promptly to prevent further damage and ensure the pump operates at its full capacity.

3. Clean the Filters

Clogged filters can restrict the flow of water and reduce the performance of your pressure washer pump. Clean or replace the filters regularly to maintain optimal water flow and prevent debris from entering the pump.

4. Flush the Pump

After each use, flush out the pump to remove any dirt, debris, or detergent residue. Connect a garden hose to the pump and turn on the water supply. Let the water run through the pump for a few minutes or until it runs clear.

5. Store Properly

When not in use, store your pressure washer pump in a clean and dry area. Protect it from extreme temperatures and ensure it is stored in an upright position to prevent oil leakage.

By following these maintenance tips, you can keep your Troy Bilt pressure washer pump in top condition and enjoy reliable performance for years to come.

Questions and answers

What are the common reasons why a Troy Bilt pressure washer pump needs to be rebuilt?

A Troy Bilt pressure washer pump may need to be rebuilt due to issues such as worn out seals, broken valves, or damaged pistons. These components can wear out over time or become damaged due to improper use or maintenance.

Are there any signs that indicate a Troy Bilt pressure washer pump needs to be rebuilt?

Yes, there are several signs that indicate a Troy Bilt pressure washer pump needs to be rebuilt. These include a loss of pressure, leaks coming from the pump, abnormal noises during operation, and reduced water flow. If you notice any of these signs, it is likely that your pump needs to be rebuilt.

Can I rebuild a Troy Bilt pressure washer pump myself, or do I need professional help?

Rebuilding a Troy Bilt pressure washer pump can be a complex task that requires some technical knowledge and experience. While it is possible to rebuild the pump yourself using a rebuild kit and proper tools, it is recommended to seek professional help if you are unsure about the process. A professional can ensure that the pump is properly rebuilt and functioning correctly.

What tools and materials do I need to rebuild a Troy Bilt pressure washer pump?

To rebuild a Troy Bilt pressure washer pump, you will need a rebuild kit specific to your pump model, wrenches, pliers, a screwdriver, a cleaning solution, a brush, and grease. Additionally, you may need a pressure gauge and a torque wrench if you are replacing any damaged or worn out parts.

How long does it usually take to rebuild a Troy Bilt pressure washer pump?

The time it takes to rebuild a Troy Bilt pressure washer pump can vary depending on the extent of the damage and the complexity of the pump model. In general, it can take anywhere from a couple of hours to a full day to complete the rebuilding process. It is important to be patient and thorough during the process to ensure that the pump is properly rebuilt.
