How To Check Pressure Switch On Washing Machine

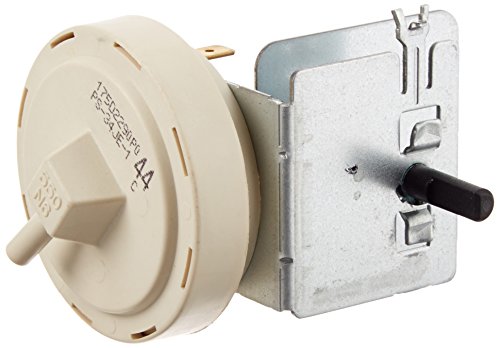

The pressure switch is a crucial component of a washing machine that controls the water level and ensures proper operation. It detects the water pressure inside the machine and signals the control board to stop or continue filling the tub. If the pressure switch is malfunctioning, it can lead to problems such as overfilling or underfilling the machine, causing damage to your clothes and the appliance.
In this article, we will guide you on how to check the pressure switch on your washing machine to diagnose any issues and potentially fix them yourself. Before we begin, please note that working with electrical components can be dangerous, so if you’re not confident in your abilities, it’s always best to seek professional help.
To check the pressure switch, you’ll need a few basic tools:
- Screwdriver
- Multi-meter
- Container for water
Here are the steps to check the pressure switch:
- Turn off the washing machine and unplug it from the power source.
- Locate the pressure switch, which is usually located on the control panel or near the water inlet valve.
- Disconnect the wires from the pressure switch by carefully removing the connectors.
- Use the screwdriver to remove the pressure switch from its housing.
- Fill the container with water and hold one end of the rubber hose to the pressure switch’s air dome.
- Use the multi-meter to check for continuity across the pressure switch terminals, or set the meter to the ohms setting and check for resistance.
If the pressure switch does not show continuity or resistance within the manufacturer’s specifications, it is likely faulty and needs to be replaced. However, if it does show continuity or resistance, the issue may lie elsewhere in the washing machine’s system.
Remember to follow the manufacturer’s instructions throughout the process and exercise caution when dealing with electrical components. If you’re unsure about any step or uncomfortable working with electricity, it’s best to call a professional technician.
By following these steps and performing a thorough check of the pressure switch, you can diagnose and potentially resolve issues with your washing machine. Hopefully, this guide has helped you understand how to check the pressure switch on your appliance and take the necessary steps to ensure its proper functioning.
Checking the Pressure Switch on Your Washing Machine
If you’re having issues with your washing machine not filling, overflowing, or displaying error codes related to water levels, the pressure switch may be the culprit. The pressure switch is a crucial component that detects the water level in the machine and signals the control board to perform certain actions.
To check the pressure switch, you’ll need a few tools and a basic understanding of how the switch works. Here’s a step-by-step guide to help you through the process:
Gather the Tools
Before you begin, gather the necessary tools, including a multimeter, a screwdriver, and a small container to catch any water that may leak during the inspection. Make sure to disconnect the power supply to the washing machine before starting any work.
Locate the Pressure Switch
The pressure switch is typically located behind the control panel of the washing machine. Refer to the manufacturer’s documentation to find the exact location of the switch. Once located, remove any screws or fasteners holding the control panel in place.
Disconnect the Pressure Switch
After removing the control panel, locate the pressure switch and disconnect the electrical connectors and tubing connected to it. Take note of the connectors and their positions to ensure proper reinstallation later.
Test the Pressure Switch with a Multimeter
Set your multimeter to continuity or resistance mode. Touch the probes to the terminals of the pressure switch and look for a reading. A reading of zero or very low resistance indicates that the switch is functional. If the meter displays infinite resistance or no continuity, the pressure switch may be faulty and needs to be replaced.
Clean or Replace the Pressure Switch
If the pressure switch is dirty or clogged, you can try cleaning it with a soft brush and some soapy water. Gently scrub the switch and tubing to remove any debris. If cleaning doesn’t resolve the issue, it’s best to replace the pressure switch with a new one.
Reconnect and Test the Pressure Switch
After cleaning or replacing the pressure switch, reattach the electrical connectors and tubing in their original positions. Make sure everything is securely fastened. Restore power to the washing machine and run a test cycle to check if the pressure switch is now functioning correctly.
Consult a Professional
If you’re unsure about checking or replacing the pressure switch yourself, it’s always best to consult a professional technician. They have the knowledge and experience to diagnose the issue accurately and make the necessary repairs or replacements.
By following these steps, you can effectively check the pressure switch on your washing machine and determine if it needs to be cleaned or replaced. Remember to always prioritize safety and consult a professional if needed.
Understanding the Importance of the Pressure Switch
The pressure switch in a washing machine is a crucial component that helps regulate the water level during a wash cycle. It ensures that the correct amount of water is added to the drum based on the selected cycle and load size. Understanding how the pressure switch works and how to check it can help you diagnose and repair issues with your washing machine.
The pressure switch is typically located near the top of the washing machine, connected to the water inlet valve and the drum. It measures the water pressure inside the drum and sends signals to the control board to control the water intake. When the water level reaches the desired level, the pressure switch interrupts the water flow and allows the washing machine to proceed to the next stage of the cycle.
To check the pressure switch, you will need a multimeter to measure continuity and an understanding of the electrical connections involved. Before testing the pressure switch, make sure to disconnect the washing machine from the power source and turn off the water supply.
Start by locating the pressure switch and disconnecting the hose connected to it. Inspect the hose for any blockages or damage. Clean or replace the hose if necessary. Next, use the multimeter to test the continuity of the pressure switch. Connect one end of the multimeter to the common terminal of the pressure switch and the other end to the terminal responsible for water level detection.
If the pressure switch shows continuity when the water level changes, it is functioning correctly. However, if there is no continuity or if the switch constantly shows continuity, it may need to be replaced. Consult the manufacturer’s instructions or a professional technician for further guidance on replacing the pressure switch.
In conclusion, the pressure switch is an essential component of a washing machine that ensures the proper water level during a wash cycle. By understanding its importance and how to check it, you can effectively diagnose and solve issues with your washing machine’s water intake system.
Step-by-Step Guide to Checking the Pressure Switch
Checking the pressure switch on your washing machine is an important step in diagnosing and fixing any issues that may be affecting its performance. The pressure switch is responsible for regulating the water level in the machine, ensuring that it fills and drains properly. Here’s a step-by-step guide to help you check the pressure switch:
Step 1: Safety First
Before starting any work on your washing machine, always ensure that the power is switched off and the machine is unplugged. Safety should be your top priority.
Step 2: Locate the Pressure Switch
The pressure switch is typically located in the control panel of the washing machine. It may be labeled as “water level switch” or “pressure control switch.” Refer to your washing machine’s manual to find its exact location.
Step 3: Access the Pressure Switch
Once you’ve located the pressure switch, you’ll need to remove the control panel to access it. This may involve unscrewing screws or releasing clips, depending on the make and model of your washing machine.
Step 4: Identify the Pressure Switch Wires
With the control panel removed, you should be able to see the pressure switch. Take note of the wires attached to it. The number of wires will vary depending on the type of pressure switch your washing machine has.
Step 5: Test the Pressure Switch
Using a multimeter, set it to the ohms setting and touch the probes to the terminals of the pressure switch. If the pressure switch is functioning properly, the multimeter should display a reading of zero ohms when the switch is closed, and infinity ohms when the switch is open.
Step 6: Check for Continuity
If the pressure switch does not show the appropriate readings on the multimeter, there may be a problem with the continuity. You can test this by disconnecting the wires from the pressure switch and using the multimeter to check for continuity between the terminals.
Step 7: Replace or Repair
If the pressure switch is not functioning correctly or there is no continuity, it may need to be replaced or repaired. Consult your washing machine’s manual for instructions on how to replace the pressure switch, or contact a professional for assistance.
By following these steps, you’ll be able to check the pressure switch on your washing machine and determine if it needs to be replaced or repaired. Remember to always prioritize safety when working with electrical appliances.
Troubleshooting Common Issues with the Pressure Switch
The pressure switch in a washing machine is an important component that regulates water levels and signals the machine to start or stop the wash cycle. If you are experiencing problems with your washing machine, it is possible that there may be an issue with the pressure switch. Here are some common issues you may encounter and how to troubleshoot them:
- Water level issues: If the water level in your washing machine is either too high or too low, it could be due to a malfunctioning pressure switch. To check if this is the issue, start by disconnecting the power to the machine. Locate the pressure switch, which is usually located near the control panel. Remove the wires connected to it and use a multimeter to test for continuity. If there is no continuity, it indicates a faulty pressure switch that needs to be replaced.
- Machine not starting: If your washing machine is not starting at all, it could be due to a faulty pressure switch. Check if the pressure switch is receiving power by using a multimeter. If there is no power, it may indicate a problem with the control board or wiring. In such cases, it is recommended to consult a professional technician for further troubleshooting and repairs.
- Machine not stopping: On the other hand, if your washing machine does not stop filling with water even when the desired water level is reached, it could be due to a malfunctioning pressure switch. Start by checking if there is any blockage in the pressure switch hose, as this can cause incorrect pressure readings. If the hose is clear and the issue persists, it is likely that the pressure switch itself needs to be replaced.
- Inconsistent water levels: If your washing machine is experiencing inconsistent water levels during the wash cycle, it could be due to a faulty pressure switch. Start by checking if the pressure switch is properly calibrated. Refer to the manufacturer’s instructions for the correct calibration procedure. If the issue persists, it is recommended to replace the pressure switch with a new one.
Remember, troubleshooting and repairing electrical components in a washing machine can be dangerous if you are not experienced or qualified. If you are unsure of how to proceed, it is always best to seek assistance from a professional technician.
When to Seek Professional Help
If you have followed the troubleshooting steps mentioned above and are still unable to identify or fix the issue with your pressure switch, it may be time to seek professional help. Here are some situations in which it is recommended to call a professional technician:
1. Non-functioning Washing Machine:
If your washing machine is completely non-functional and none of the troubleshooting steps have helped, it could be a more serious issue that requires professional expertise. A certified technician will be able to diagnose the problem accurately and provide the necessary repairs or replacements.
2. Safety Concerns:
If you suspect any safety concerns with your washing machine or its pressure switch, such as electric shocks, sparks, or burning smells, it is crucial to stop using the machine immediately and call a professional. These issues can be dangerous and should be addressed by a trained technician.
Note: Do not attempt to repair or replace any electrical components yourself if you are not experienced or qualified to do so. This can result in further damage or injury.
In conclusion, while checking the pressure switch on your washing machine can often be done manually, there are certain situations where professional help is necessary. It’s important to prioritize your safety and the proper functioning of your appliance, so don’t hesitate to call a professional if needed.
Questions and answers
What is a pressure switch in a washing machine?
A pressure switch in a washing machine is a device that controls the water level by sensing the air pressure inside the machine. When the water reaches a certain level, the pressure switch sends a signal to the control board to stop the water flow.
How can I check the pressure switch on my washing machine?
To check the pressure switch on your washing machine, you can use a multimeter to test for continuity. First, disconnect the power to the machine and remove the control panel. Locate the pressure switch and remove the wires connected to it. Set your multimeter to the ohms setting and touch the probes to the terminals of the pressure switch. If the switch is working properly, the multimeter should display a reading of zero or close to zero ohms. If the reading is infinity or significantly higher, the pressure switch may be faulty and need to be replaced.
What are the signs of a faulty pressure switch?
There are a few signs that indicate a faulty pressure switch in a washing machine. One sign is that the machine may not fill with water or may overfill, as the pressure switch controls the water level. Another sign is that the machine may not agitate or spin, as the pressure switch also plays a role in these operations. Additionally, if the pressure switch is faulty, it may cause the machine to display error codes on the control panel. If you notice any of these signs, it is recommended to check the pressure switch for any issues.
Can a pressure switch be repaired or does it need to be replaced?
In most cases, a faulty pressure switch in a washing machine needs to be replaced rather than repaired. The internal mechanism of the pressure switch is delicate and intricate, making it difficult to repair. Additionally, replacing the pressure switch is often more cost-effective and efficient than attempting to repair it. It is recommended to consult the manufacturer’s instructions or a professional technician for the specific replacement process for your washing machine model.
Are there any safety precautions to take when checking the pressure switch on a washing machine?
Yes, there are a few safety precautions to keep in mind when checking the pressure switch on a washing machine. First, always disconnect the power to the machine before attempting any repairs or inspections. This will help prevent electric shocks or other accidents. Additionally, be careful when working around the internal components of the machine to avoid injury. If you are unsure about any aspect of the process, it is recommended to seek assistance from a professional technician.
Why is it important to check the pressure switch on a washing machine?
Checking the pressure switch on a washing machine is important because it ensures the proper functioning of the machine. The pressure switch is responsible for detecting the water level in the machine and controlling the water flow. If the pressure switch is faulty, it can lead to issues such as overfilling or underfilling of water, which can affect the performance and efficiency of the washing machine.
