When it comes to keeping your home or business exterior clean, a pressure washer can be an invaluable tool. But have you ever wondered how a pressure washer works? It’s not just the force of the water that gets the job done – there’s a lot more going on behind the scenes.

One important component of a pressure washer is the unloader valve. The unloader valve plays a crucial role in regulating the pressure that the washer produces. Without it, the pressure could become too high, causing damage to surfaces or even the pressure washer itself.

The unloader valve works by diverting the flow of water when the trigger on the wand is released. When the trigger is pulled, the water flows through the valve and out of the nozzle at high pressure. But when the trigger is released, the unloader valve redirects the flow of water back to the inlet side of the pump, effectively stopping the flow and relieving the pressure.

This process is made possible by a combination of mechanical and hydraulic principles. The unloader valve contains a spring that is compressed when the trigger is pulled, allowing the water to flow through. When the trigger is released, the spring pushes against a piston, closing off the flow and redirecting it back to the pump.

So, the next time you use a pressure washer to clean your driveway or deck, take a moment to appreciate the inner workings of the machine. And remember, it’s the unloader valve that helps keep the pressure in check and ensures a safe and effective cleaning experience.

AR Annovi Reverberi Annovi Reverberi VRT3-310 Unloader, Black Spring
AR Annovi Reverberi Annovi Reverberi VRT3-310 Unloader, Black Spring
$49.17
$44.92
Amazon.com
Amazon price updated: October 16, 2024 11:49 pm

Understanding Pressure Washer Unloader Valve Mechanism

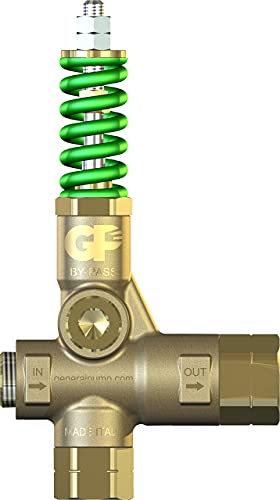

The pressure washer unloader valve is a crucial component that helps regulate the pressure and flow of water in a pressure washing system. It works by diverting water back to the inlet side of the pump when the trigger gun is released or when the pressure inside the system becomes too high.

The mechanism of the unloader valve involves a spring-loaded plunger or piston that is controlled by the pressure of the water passing through the valve. When the trigger gun is pulled, the plunger or piston moves, allowing water to flow out of the pump and through the pressure washer wand. As the pressure inside the system reaches a certain level, the spring is compressed, causing the plunger or piston to close off the flow of water.

When the trigger gun is released, the pressure inside the system drops, causing the spring to expand and the plunger or piston to move, diverting water back to the inlet side of the pump. This action relieves the pressure and prevents the pump from becoming overloaded. It also allows the pump to maintain a constant flow of water when the trigger gun is not engaged.

The unloader valve mechanism is designed to be adjustable, allowing users to set the desired pressure at which the valve will open and close. This adjustment is typically done by turning a knob or screw on the valve. By setting the correct pressure, users can ensure that their pressure washer operates efficiently and effectively.

Advantages Disadvantages
1. Ensures safety by preventing pump overload. 1. Requires periodic adjustment and maintenance.
2. Helps maintain a constant flow of water. 2. May be susceptible to wear and tear over time.
3. Allows for adjustable pressure settings. 3. May require replacement if damaged or malfunctioning.

Importance of Unloader Valve for Pressure Washer

An unloader valve is an essential component in a pressure washer system that helps regulate the flow of water and relieve excess pressure. It plays a crucial role in maintaining the performance and longevity of the pressure washer, as well as ensuring the safety of the operator and the equipment.

Comet 8108.2532.00-BG VRT 3 Pressure Washer Unloader, 4500 PSI, Black
Comet 8108.2532.00-BG VRT 3 Pressure Washer Unloader, 4500 PSI, Black
$48.67
Amazon.com
Amazon price updated: October 16, 2024 11:49 pm

1. Pressure Regulation

The unloader valve is responsible for regulating the pressure produced by the pressure washer. It controls the amount of pressure that is released from the pump and ensures that it stays within the optimal range for effective cleaning. By adjusting the unloader valve, the operator can increase or decrease the pressure output to suit different cleaning tasks, such as delicate surfaces or stubborn stains.

2. Pressure Relief

One of the main functions of the unloader valve is to relieve excess pressure from the system. If the pressure inside the pump becomes too high, the unloader valve opens, redirecting the flow of water back into the inlet side of the pump. This prevents damage to the pump and other components by releasing the excess pressure and maintaining a stable operating pressure.

See also  What Do You Put On Concrete Before Pressure Washing

Moreover, the unloader valve helps protect the pressure washer from overloading, which can lead to premature wear and tear. It prevents the pump from continuously running at high pressure when the trigger gun is not engaged, reducing stress on the pump and extending its lifespan.

3. Safety

The unloader valve is a vital safety feature of the pressure washer. It prevents the pressure inside the system from building up to dangerous levels, reducing the risk of accidents or injuries. By regulating and relieving the pressure, the unloader valve helps maintain a safe working environment for the operator.

Additionally, the unloader valve allows for the automatic shutdown of the pressure washer when the trigger gun is released. This feature enables the operator to pause the cleaning process without the need to turn off the entire machine, saving both time and energy.

Annovi Reverberi Complete Pump Head with Unloader & Relief Valve, AR43361, 43361
Annovi Reverberi Complete Pump Head with Unloader & Relief Valve, AR43361, 43361
$104.99
$98.83
Amazon.com
Amazon price updated: October 16, 2024 11:49 pm

In conclusion, the unloader valve is an integral part of any pressure washer system. Its role in pressure regulation, pressure relief, and safety cannot be overstated. By understanding the importance of the unloader valve, operators can optimize the performance of their pressure washer while ensuring a safe and efficient cleaning process.

Key Components of Unloader Valve in a Pressure Washer

The unloader valve is an essential part of a pressure washer system and plays a crucial role in regulating the pressure that the machine generates.

1. Valve Body

The valve body is the main component of the unloader valve and is responsible for controlling the flow of water. It is usually made of durable materials such as brass or stainless steel to withstand high-pressure conditions.

2. Spring

The spring is a crucial component that helps to regulate the pressure in the pressure washer system. It is usually made of high-quality steel and is calibrated to a specific pressure range. When the pressure in the system exceeds the set limit, the spring compresses, allowing the valve to open and divert excess water to the bypass line.

3. Bypass Line

The bypass line is a separate pipe that allows excess water to bypass the pump when the pressure reaches the set limit. It ensures that the water does not circulate continuously through the pump when the trigger is released, which could damage the pump. The bypass line is connected to the unloader valve and redirects the water back to the inlet side of the pump.

Annovi Reverberi VRT3-310EZ Unloader, Black Spring, 4500 PSI, 10.5 GPM, Adjustment Knob, EZ Start, Brass
Annovi Reverberi VRT3-310EZ Unloader, Black Spring, 4500 PSI, 10.5 GPM, Adjustment Knob, EZ Start, Brass
$50.25
Amazon.com
Amazon price updated: October 16, 2024 11:49 pm

4. Pressure Adjustment Knob

Some unloader valves have a pressure adjustment knob that allows the user to control the pressure output of the pressure washer. By turning the knob, the user can increase or decrease the pressure as needed. This feature is especially useful when different surfaces or cleaning tasks require different pressure levels.

5. O-rings and Seals

O-rings and seals are essential components of the unloader valve that ensure a tight seal and prevent any water leakage. They are usually made of high-quality rubber or silicone and are designed to withstand the high-pressure conditions of the pressure washer system.

Overall, the unloader valve and its key components are vital for maintaining the proper functioning of a pressure washer. By regulating the pressure and diverting excess water, the unloader valve helps to protect the pump and ensure efficient cleaning performance.

How Unloader Valve Regulates Pressure in a Pressure Washer

The unloader valve is a crucial component of a pressure washer that helps regulate the pressure produced by the pump. It ensures that the pressure does not exceed a certain limit, preventing damage to the equipment and providing a safe operating environment.

When the trigger of the pressure washer gun is released, the unloader valve plays a key role in diverting the flow of water back to the inlet side of the pump. This action relieves the pressure that builds up in the pump, allowing it to operate smoothly and preventing any potential damage.

Homelite Replaces Himore Complete Outlet Manifold for Pressure Washer Pump, USES 5 Screws in This Manifold, Including O-Rings, Unloader, Outlet Pipe Chemical Injector
Homelite Replaces Himore Complete Outlet Manifold for Pressure Washer Pump, USES 5 Screws in This Manifold, Including O-Rings, Unloader, Outlet Pipe Chemical...
$44.99
Amazon.com
Amazon price updated: October 16, 2024 11:49 pm
See also  How To Feed Soap To A Dewalt Pressure Washer

The unloader valve operates through a combination of mechanical and hydraulic principles. The pressure from the water flow acts against a spring-loaded piston, which helps control the pressure regulation. When the pressure reaches a predetermined level, the piston moves, allowing water to bypass the high-pressure pump and flow back to the pump’s inlet.

Mechanical Components of an Unloader Valve

The mechanical components of an unloader valve typically include a spring, a piston or a plunger, and an adjustment mechanism. The spring provides the necessary force to compress the piston against the water pressure. The adjustment mechanism allows the user to set the desired pressure level at which the valve will actuate.

Hydraulic Operation of the Unloader Valve

The unloader valve also utilizes hydraulic principles to regulate the pressure. As the water pressure builds up, it acts against the piston, compressing the spring. This compression creates a force that helps the valve open and redirect the water flow.

Once the pressure drops below the preset level, the spring extends, pushing the piston back into its original position, and closing off the bypass flow. This action allows the pressure washer pump to build up pressure again when the trigger is pulled.

Overall, the unloader valve is an essential part of a pressure washer, ensuring that the pressure is regulated effectively. By diverting excess water flow back into the pump’s inlet, it prevents damage to the equipment and allows for safe and efficient operation.

VEVOR Horizontal Triplex Pressure Washer Pump, 3/4" Shaft, 3700 PSI, 2.5 GPM, Replacement Power Washer Pumps Kit, Parts Washer Pump, Compatible with Simpson MorFlex Models 40224, 40225, 40226 etc.
VEVOR Horizontal Triplex Pressure Washer Pump, 3/4" Shaft, 3700 PSI, 2.5 GPM, Replacement Power Washer Pumps Kit, Parts Washer Pump, Compatible with Simpson...
$139.99
$109.99
Amazon.com
Amazon price updated: October 16, 2024 11:49 pm

Common Issues and Troubleshooting Tips for Pressure Washer Unloader Valve

The pressure washer unloader valve is a crucial component that helps regulate the flow of water in a pressure washer system. However, like any other mechanical part, it can experience issues that may affect its performance. Here are some common issues with pressure washer unloader valves and troubleshooting tips to resolve them:

1. Low pressure: If you are experiencing low pressure from your pressure washer, it could be due to a malfunctioning unloader valve. Check if there is any debris or blockage in the valve, and clean it thoroughly. If the issue persists, you may need to replace the valve.

2. Pressure fluctuations: If your pressure washer’s pressure fluctuates while in use, it could indicate a problem with the unloader valve. Inspect the valve for any signs of wear or damage, and replace it if necessary. Additionally, make sure the adjusting nut on the valve is properly tightened to maintain consistent pressure.

3. Sticking or jamming: If the unloader valve gets stuck or jams, it may prevent water from flowing properly through the system. This can result in erratic pressure or no pressure at all. Clean the valve thoroughly to remove any dirt or debris that may be causing the issue. If the valve still sticks or jams, it may need to be replaced.

4. Leakage: Leakage from the unloader valve is another common issue that can be resolved with proper troubleshooting. Check all the connections and fittings to ensure they are tight and secure. If you notice any damaged or worn-out seals or O-rings, replace them to solve the leakage problem.

YAMATIC 7/8" Shaft Vertical Pressure Washer Pump - Max 3200 PSI @ 2.5 GPM Original & Replacement Pump for Power Washer Compatible with HU80722 PS80944 GCV190 RY80930 and More
YAMATIC 7/8" Shaft Vertical Pressure Washer Pump - Max 3200 PSI @ 2.5 GPM Original & Replacement Pump for Power Washer Compatible with HU80722 PS80944 GCV190...
$99.99
Amazon.com
Amazon price updated: October 16, 2024 11:49 pm

5. Unloader valve not engaging: If the unloader valve fails to engage, it may prevent the pressure washer from turning off when the trigger is released. This can lead to overheating of the pump and other components. Ensure that the valve is not blocked or jammed, and clean it if necessary. If the issue continues, consider replacing the unloader valve.

Remember, it is crucial to follow the manufacturer’s instructions and guidelines when troubleshooting or replacing any parts of your pressure washer, including the unloader valve. If you are unsure or uncomfortable performing these tasks, it is best to consult a professional for assistance.

Regular Maintenance and Cleaning of Pressure Washer Unloader Valve

The unloader valve is an important component of a pressure washer that helps regulate the pressure and prevent damage to the machine. Regular maintenance and cleaning of the unloader valve are essential to ensure its proper functioning and prolong the lifespan of the pressure washer.

Inspecting for Debris and Blockages

One of the main reasons why unloader valves may fail is due to the buildup of debris and blockages. Regularly inspecting the valve for any signs of dirt, sand, or other particles is crucial. If any debris is found, it should be carefully removed using a small brush or compressed air.

See also  Does Pressure Washing Damage A Vinyl Fence

Checking for Wear and Tear

Over time, the unloader valve can experience wear and tear, which may lead to leakage or loss of pressure. Inspect the valve for any signs of corrosion, cracks, or damaged seals. If any signs of damage are spotted, replace the valve immediately to prevent further problems.

Additionally, it is essential to check the adjustment knob or screw of the unloader valve regularly to ensure it is functioning properly. The knob should be easy to turn and make smooth adjustments to the pressure. If it feels loose or stiff, it may need to be lubricated or replaced.

It is also recommended to examine the fittings and connections of the unloader valve for any loose or damaged parts. Tighten any loose fittings or replace damaged ones to ensure a secure and leak-free connection.

Finally, after performing the necessary maintenance or cleaning tasks, it is crucial to test the pressure washer to ensure the unloader valve is functioning correctly. Turn on the pressure washer and check for any unusual noises, pressure fluctuations, or leaks. If any issues are detected, further inspection or repairs may be necessary.

By regularly maintaining and cleaning the unloader valve, pressure washer owners can ensure its optimal performance and longevity. It is recommended to follow the manufacturer’s guidelines for specific maintenance tasks and schedules to ensure the best results.

Questions and answers

What is a pressure washer unloader valve?

A pressure washer unloader valve is a device that helps regulate the water pressure coming from the pump of a pressure washer. It is designed to divert the flow of water when the trigger on the pressure washer gun is released, preventing unnecessary strain on the pump and prolonging its lifespan.

How does a pressure washer unloader valve work?

A pressure washer unloader valve works by diverting water flow when the trigger on the pressure washer gun is released. When the trigger is pulled, the pressure from the pump pushes against the unloader valve, keeping it in a closed position. This allows water to flow freely through the gun. When the trigger is released, the pressure from the pump drops, causing the unloader valve to open slightly and divert the water flow back to the inlet side of the pump.

What are the benefits of using a pressure washer unloader valve?

Using a pressure washer unloader valve has several benefits. Firstly, it helps regulate the water pressure, preventing damage to the pump and other components of the pressure washer. Secondly, it allows for easy and convenient control of the water flow, as the unloader valve automatically diverts water flow when the trigger is released. Lastly, it helps prolong the lifespan of the pressure washer by reducing wear and tear on the pump.

Are there different types of pressure washer unloader valves?

Yes, there are different types of pressure washer unloader valves available. Some common types include the flow actuated unloader valve, the pressure actuated unloader valve, and the bypass unloader valve. Each type operates slightly differently and is designed for specific pressure washer models and applications.

Can a pressure washer function without an unloader valve?

No, a pressure washer cannot function properly without an unloader valve. Without an unloader valve, the pressure from the pump would continue to build up when the trigger on the gun is released, creating unnecessary strain on the pump and potentially causing damage. The unloader valve is essential for regulating the water pressure and ensuring the safe and efficient operation of a pressure washer.

What is a pressure washer unloader valve?

A pressure washer unloader valve is a safety device that helps regulate the pressure and flow of water in a pressure washer. It is responsible for diverting the flow of water when the gun trigger is released, preventing the pump from building up too much pressure.
